Real ADS-B receiver in combination with RTL SDR stick

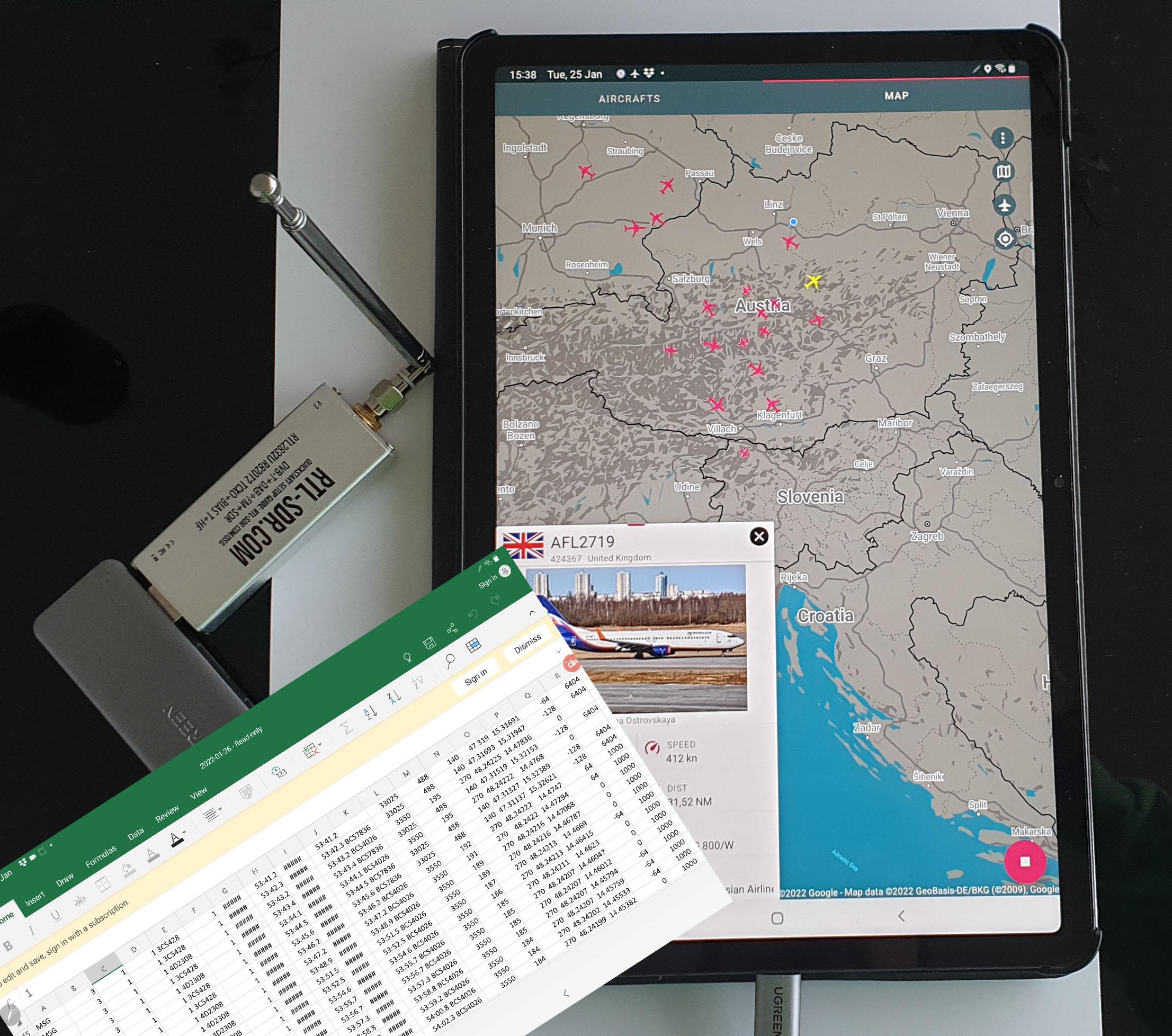

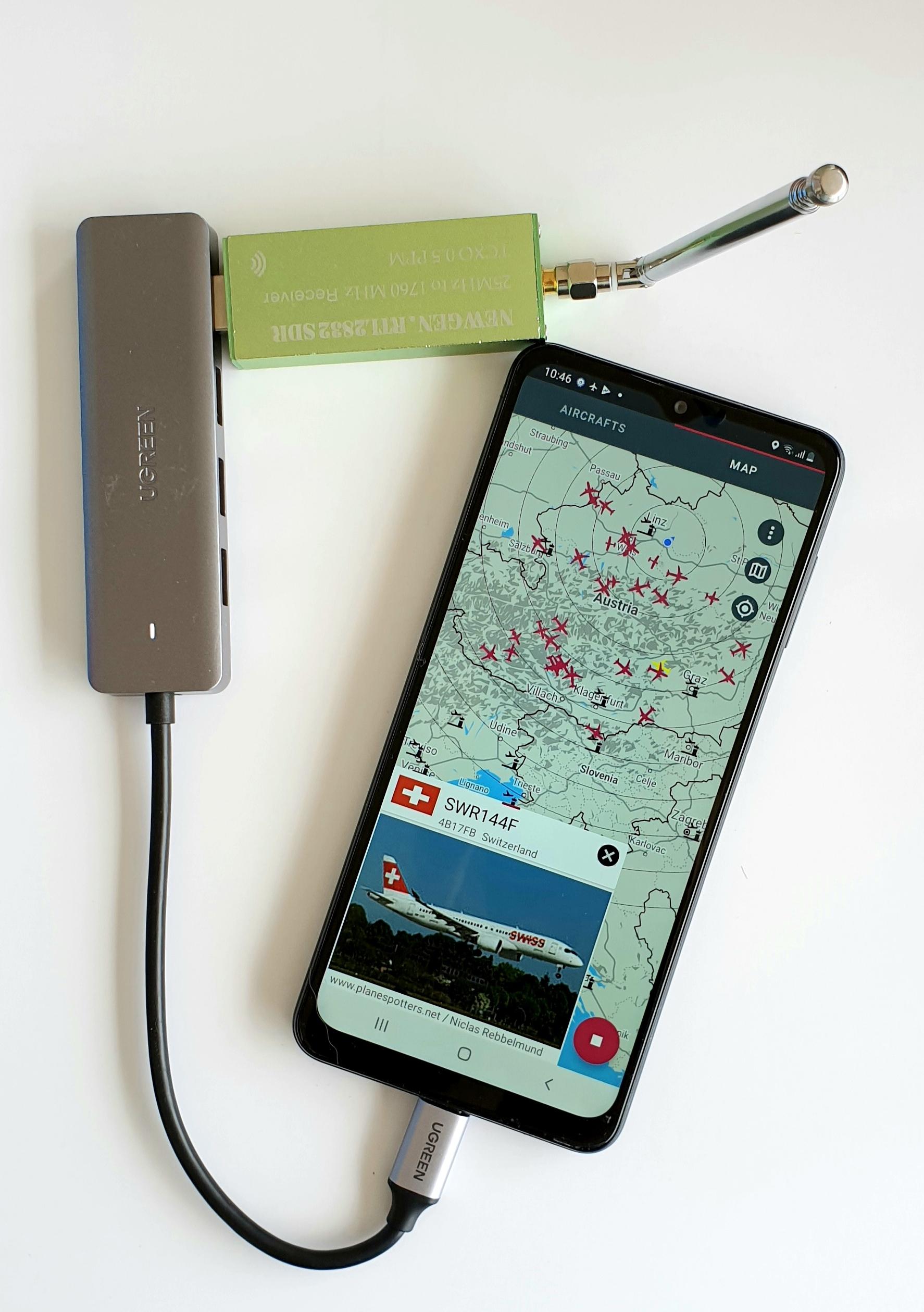

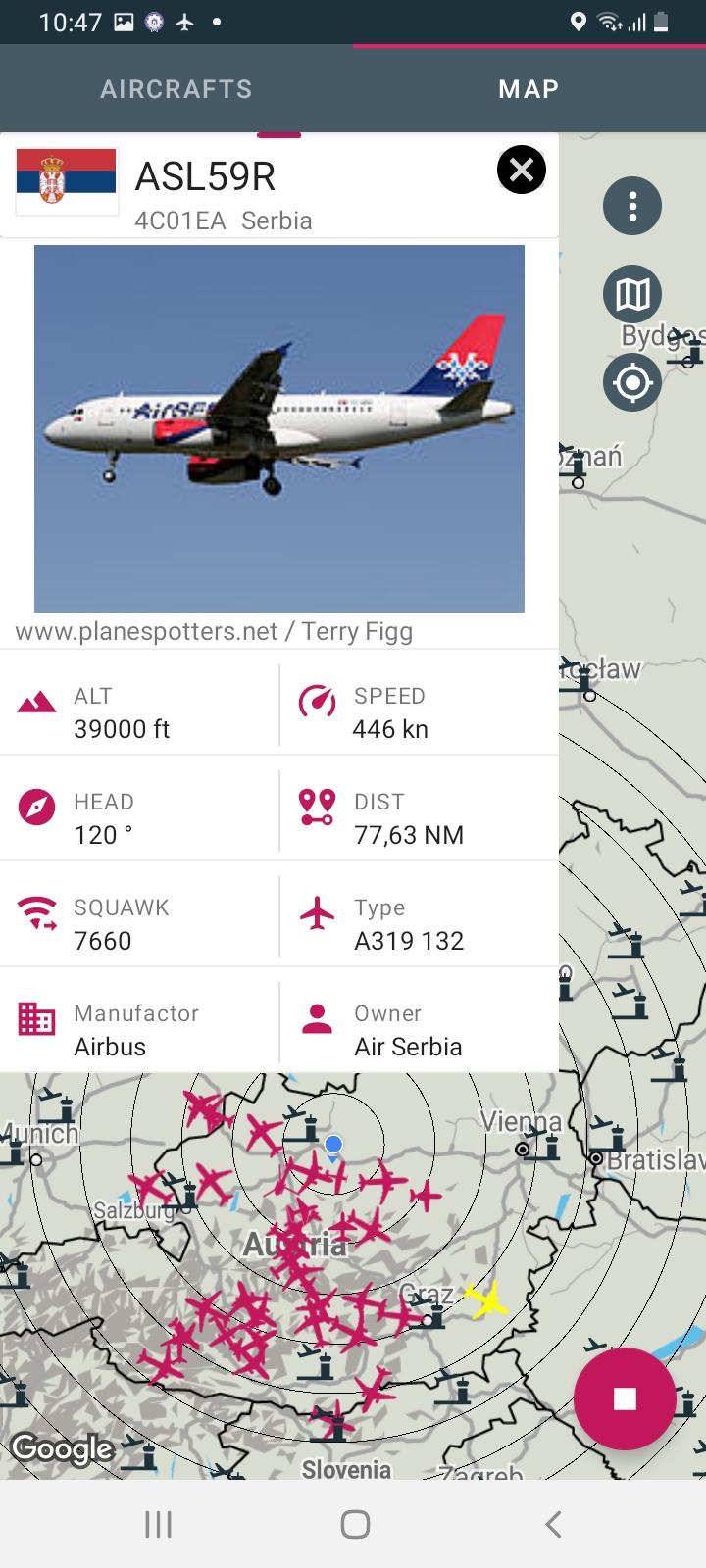

Turn your device in combination with a DVB-T USB stick (RTL-SDR) to a real ADS-B receiver and show aircraft positions on a map.
www.ebctech.eu
DISCLAIMER:
NEVER USE THIS APP FOR NAVIGATION.
PLEASE CHECK YOUR LOCAL LAW IF RECEIVING OF ADS-B DATA IS LEGAL.
IN SOME COUNTRYS IT IS ILLEGAL TO RECEIVE SUCH RADIO TRANSMISSION.
What's New in the Latest Version 1.2.7
Last updated on Jun 28, 2024
-update for android system functions
If you have any questions or need support please write me a email
Dump1090 is a free and open-source software that enables users to receive and decode ADS-B (Automatic Dependent Surveillance-Broadcast) signals from aircraft equipped with ADS-B transponders. These signals provide real-time information about an aircraft's position, altitude, speed, and other flight data.
Receiving and Decoding ADS-B Signals
Dump1090 uses a software-defined radio (SDR) dongle, such as the RTL-SDR, to receive ADS-B signals. The SDR dongle converts the radio signals into digital data, which is then processed by Dump1090 to extract the aircraft data. Dump1090 can decode both Mode S and Mode C ADS-B signals.
Visualization and Analysis
Dump1090 provides a graphical user interface (GUI) that allows users to visualize the decoded aircraft data. The GUI displays the aircraft's position on a map, along with its altitude, speed, and other information. Users can also filter the data by aircraft type, altitude, and other criteria.
Data Export and Sharing
Dump1090 can export the decoded aircraft data in various formats, including CSV, KML, and JSON. This data can be used for further analysis, such as tracking aircraft movements, studying flight patterns, and identifying potential safety hazards. Dump1090 also supports data sharing with other users through online platforms like FlightAware and OpenSky Network.
Advanced Features
Dump1090 offers several advanced features for experienced users. These features include:
* Signal strength and quality monitoring: Users can monitor the signal strength and quality of the received ADS-B signals. This information can help in optimizing the SDR dongle's performance and troubleshooting any reception issues.
* Filtering and processing: Dump1090 allows users to apply custom filters to the decoded data. This enables users to focus on specific aircraft types, altitudes, or other criteria.
* Range estimation: Dump1090 can estimate the range of the received ADS-B signals. This information can help users determine the approximate distance to the aircraft.
* Script support: Dump1090 supports scripting, allowing users to automate tasks and extend its functionality.
Applications
Dump1090 has a wide range of applications, including:
* Aircraft tracking: Monitoring the movements of aircraft in real-time.
* Flight data analysis: Studying flight patterns, identifying safety hazards, and improving airspace management.
* Aviation research: Conducting research on aircraft performance, air traffic patterns, and other aviation-related topics.
* Hobbyist use: Enthusiasts can use Dump1090 to monitor aircraft activity, learn about aviation, and build their own aircraft tracking systems.
